DM706. E1 Minimux.
DM706
E1 Minimux

The DM706 family of products features minimux equipments and E1 compact router desktop model, operating on applications of data and voice aggregated into a single E1 channel. Features Electric E1 interface (G.703 / G.704), Digital interface (V.35, V.36 / V.11 or V.28), Ethernet interface and FXS interfaces.

Characteristics
  • It allows 64kbit/s timeslots to be distributed among tributaries: E1, Digital and Ethernet allowing, e.g., simultaneous traffic of a digital PABX voice channels, a router and a LAN.
  • The equipment features an internal router, which allows it to route between the WAN (Frame Relay/PPP) interface at n x 64kbit/s rates (n 1-32) and the Ethernet Interface.
  • Remote user authentication (RADIUS and TACACS), network security (firewall), address and port translation (NAT), safe connections (VPN), packet tagging and prioritizing (QoS).
  • Remote management via SNMP directly connected to the Fast Ethernet port or in-band through the E1 interface.
  • Remote management via HDLC, allowing it to manage the multiplexer functionalities of another DM706CR or DM706CS. The equipment mux functionalities can be managed through the DMView management platform when the DM706CR or the DM706CS is the DM705, DM706C or the DM704S/SE multiplexor remote device used in association with the DMG20 management card.
  • It is entirely configurable via terminal emulation with a DB9 RS232 control port on the front panel or via Telnet or SSH, featuring a physical connection with a LAN or WAN Router port.
  • Synchronicity with an internal clock, regenerated clock from the G.703 signal of the E1 port or regenerated from the V.35 port.
  • Automatic commuting to the internal clock in the absence of the regenerated clock.
  • Test pattern generator with error detection, activated by the control port (BERT).



Applications

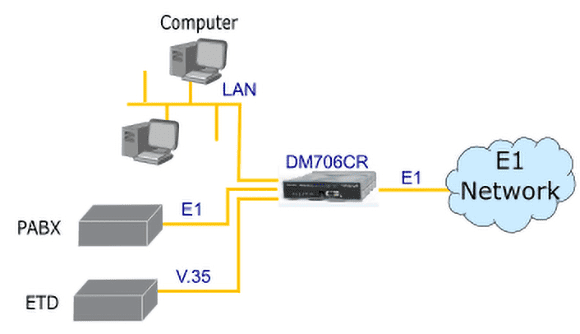

DM706CR



DM706CR e DM706CS

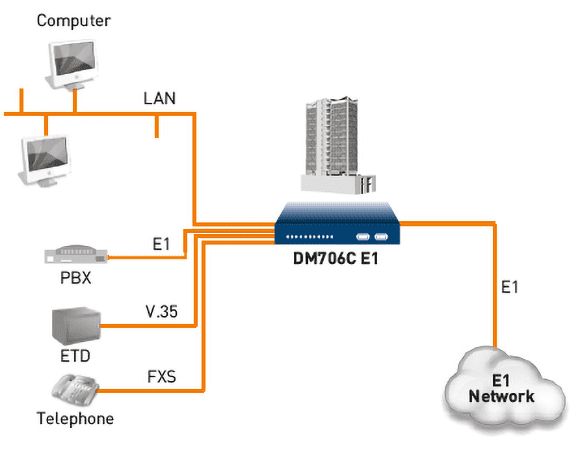

DM706C
